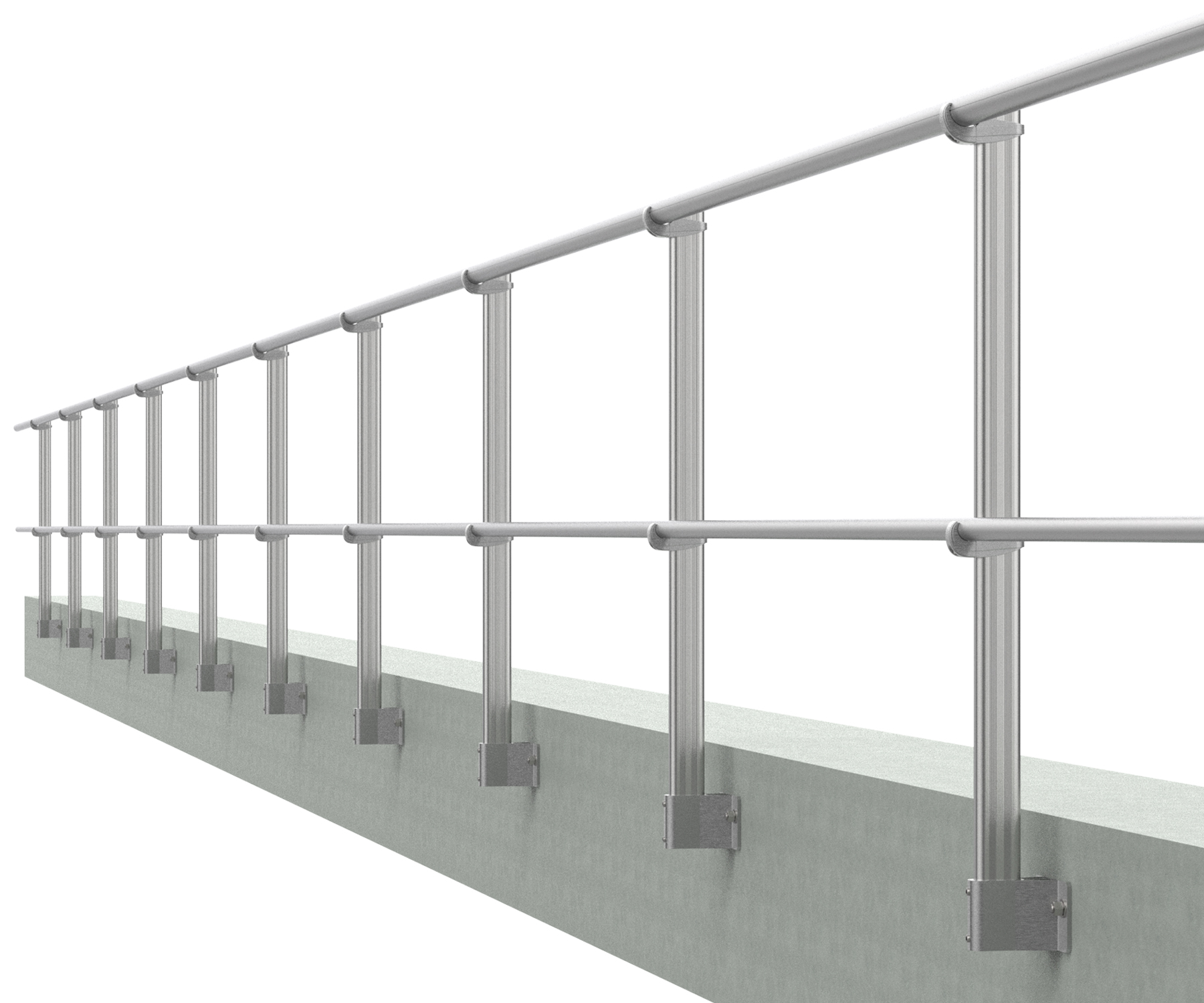

When a parapet is lower than the safety standards prescribe to safely access a roof, a wall bracket guardrail can be mounted to raise the barrier and create a safe zone. This type of wall bracket railing is either mounted on top or on the inside of the parapet or wall.
Cuando un parapeto es inferior a lo que prescriben l
Aluminum
Post Height
System Scale
Packaging

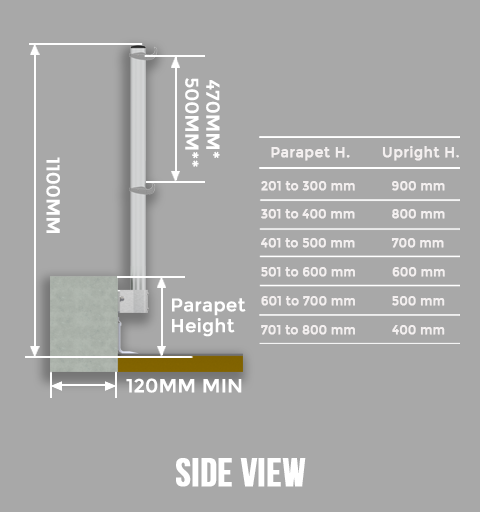

① The minimum vertical height of upright is 1100mm ② The maximum height between handrail and kneerail is 470/500mm
③ The maximum allowed space between wall and first post is 500mm ④ The maximum allowed space between free end and post is 500mm
⑤ The maxmium allowed span between posts is 1750/2500mm ⑥ The thickness of parapet should be greater than 120mm
*EN14122-3:2016
**EN13374:2013+A1:2018
