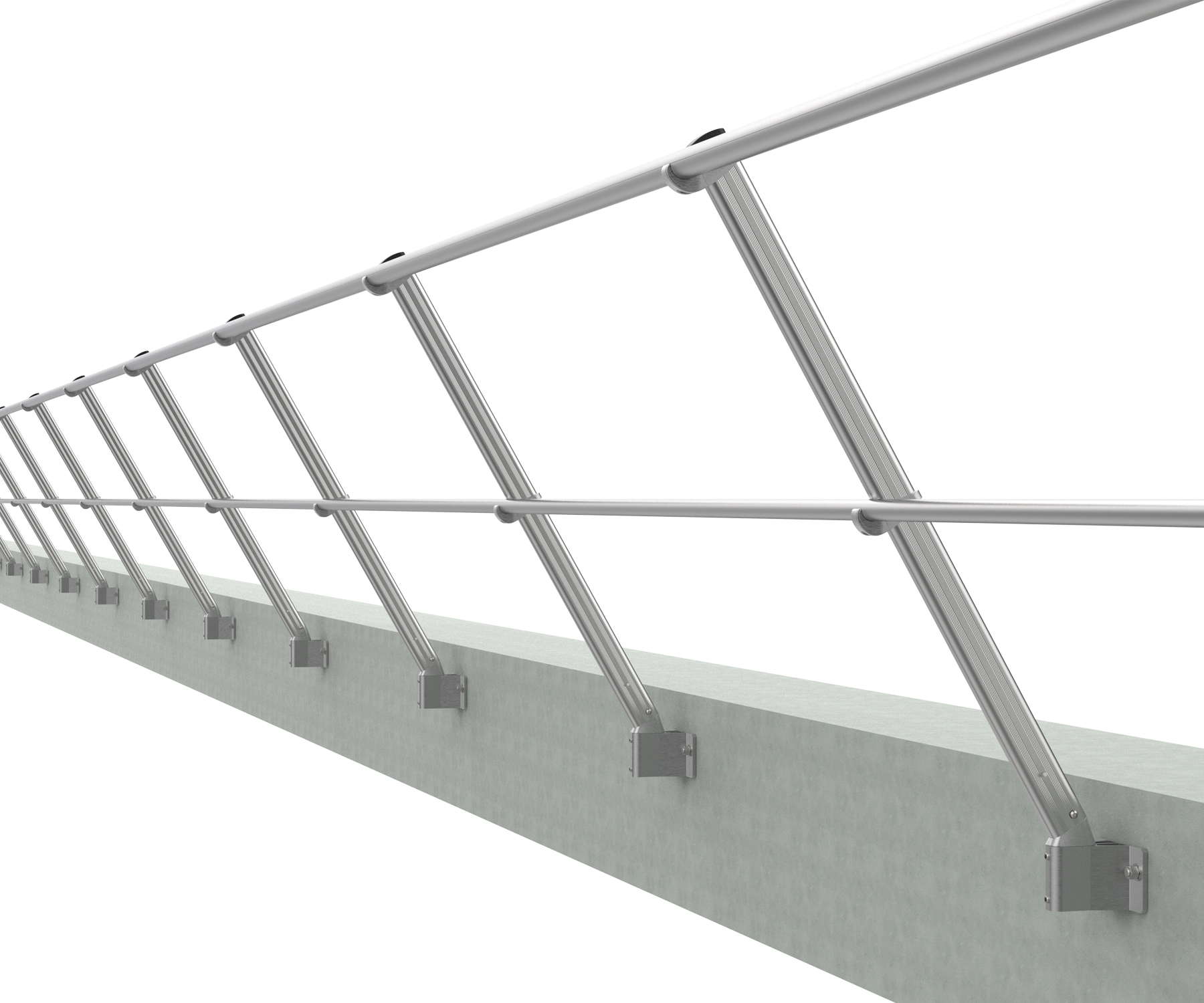

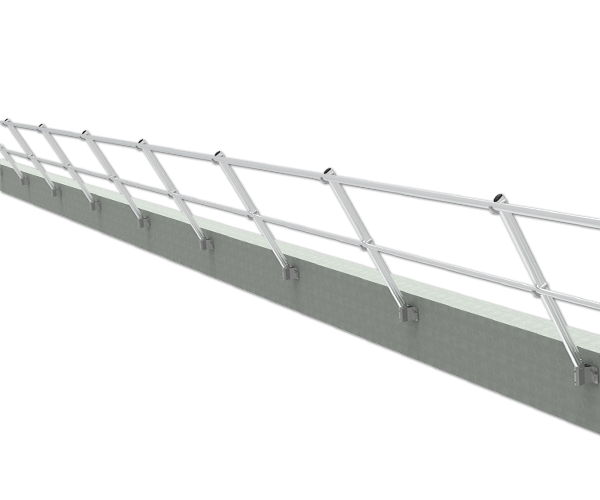

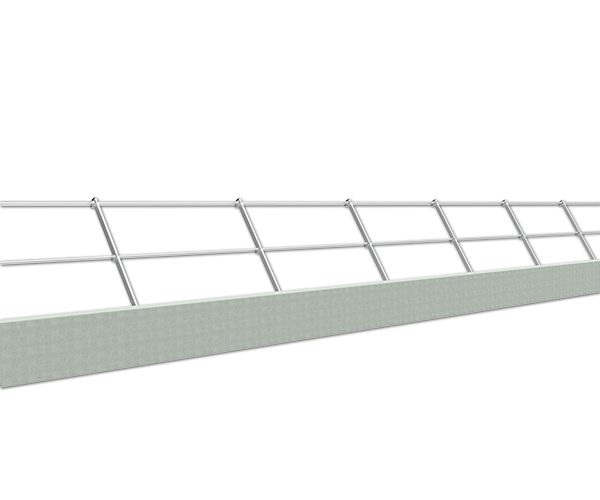

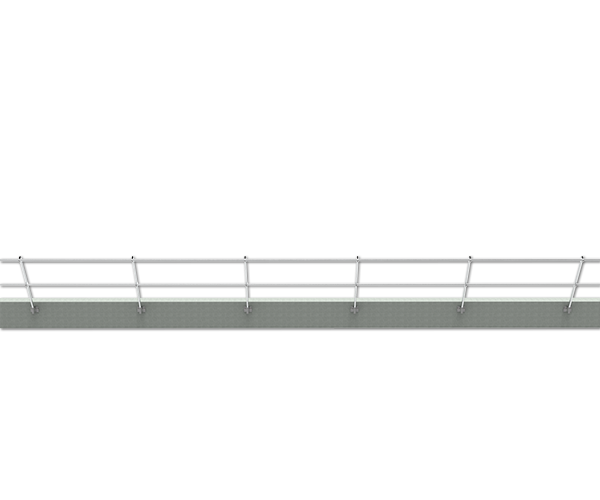

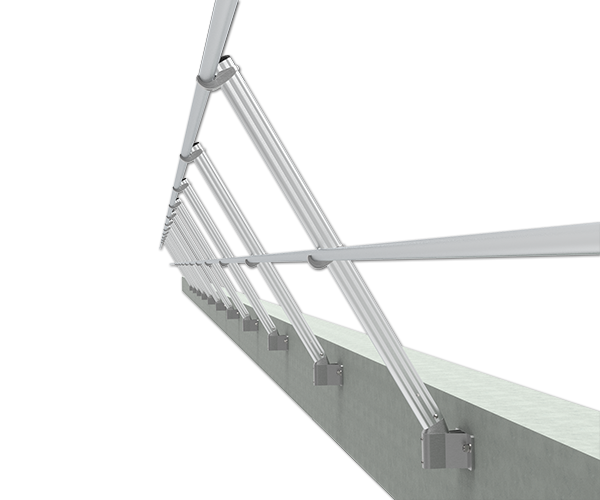

When a parapet is lower than the safety standards prescribe to safely access a roof, a wall mounted guardrail can provide a larger safe zone. This type of guardrail is either mounted on top or on the inside of the parapet or wall.
Aluminum
Post Height
System Scale
Packaging

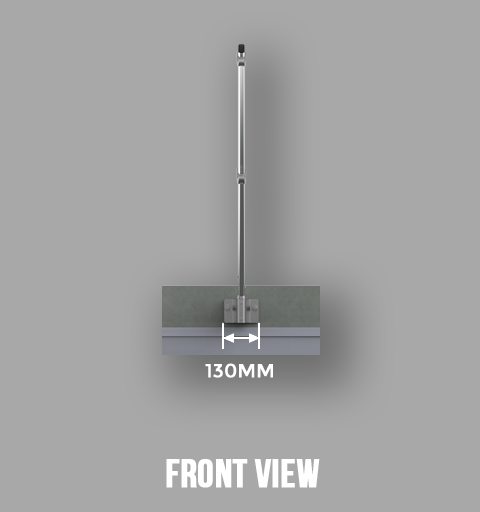

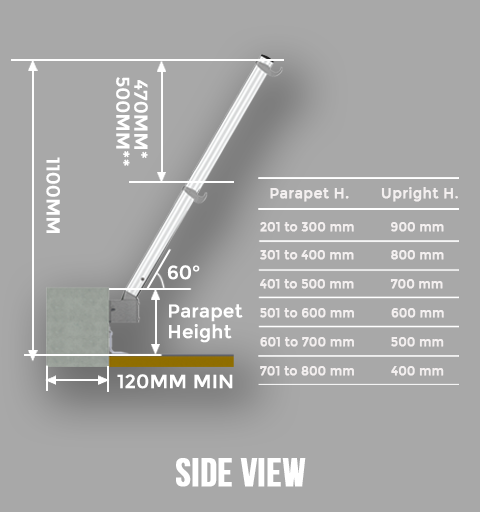

① The minimum vertical height of upright is 1100mm ② The maximum height between handrail and kneerail is 500mm

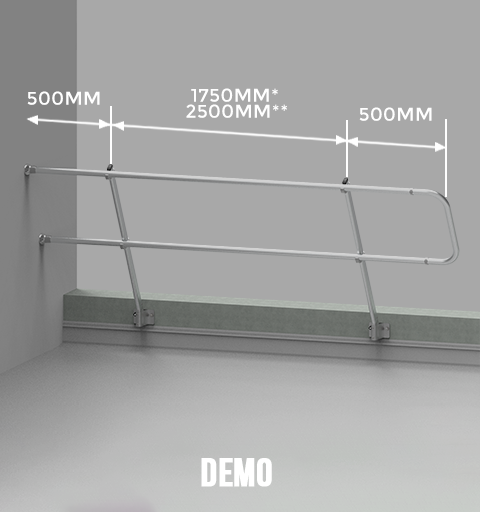

③ The maximum allowed space between wall and first post is 500mm ④ The maximum allowed space between free end and post is 500mm
⑤ The maxmium allowed span between posts is 1750mm ⑥ The thickness of parapet should be greater than 120mm
*EN14122-3:2016
**EN13374:2013+A1:2018
