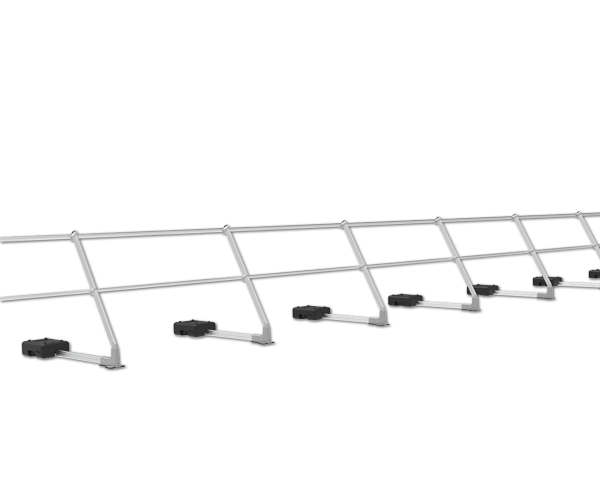

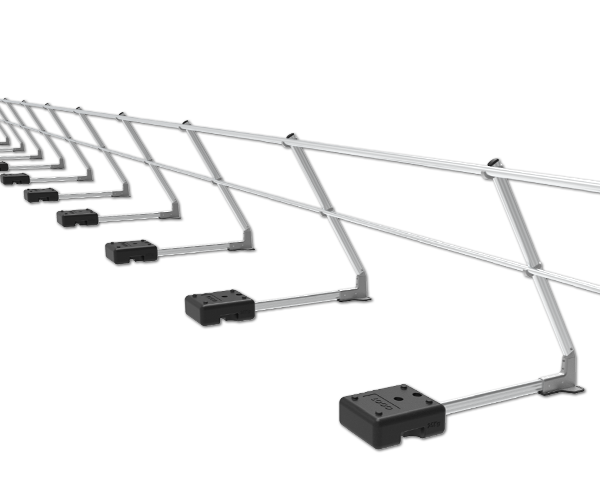

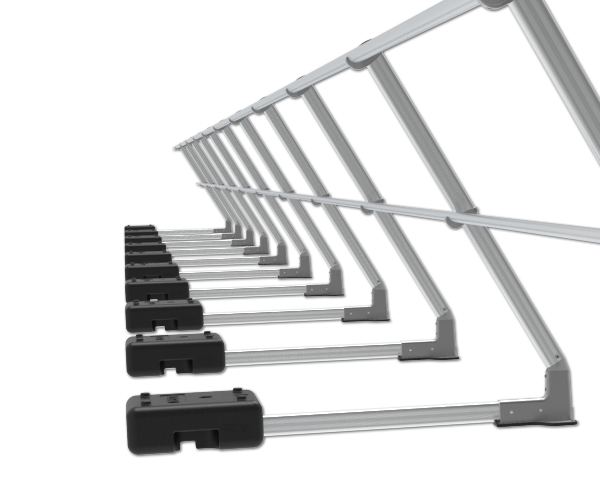

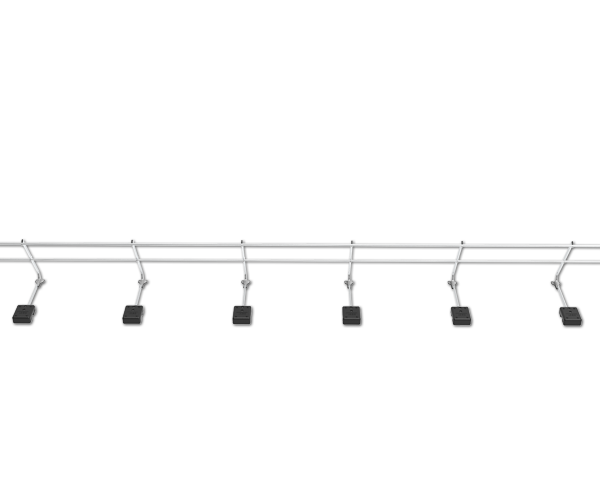

The inclined temporary guardrail is a system without fixing weighted by counterweights, providing extra protection range than ordinary one. It is recommended when it is not possible to fix the railing on the parapet or the slab. It ensures the collective protection of a new or old building.
Aluminum
Post Height
System Scale
Packaging

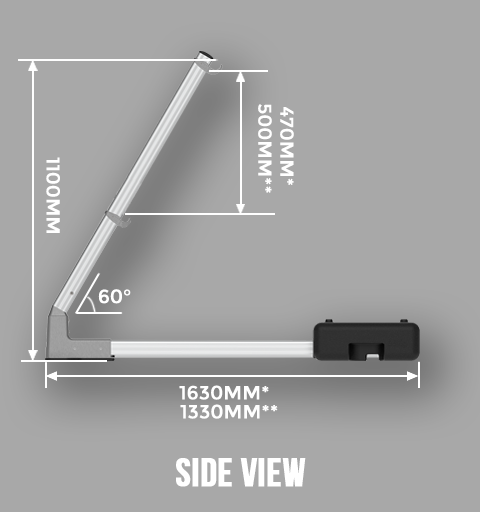

① The minimum vertical height of upright is 1100mm ② The maximum height between handrail and kneerail is 470/500mm

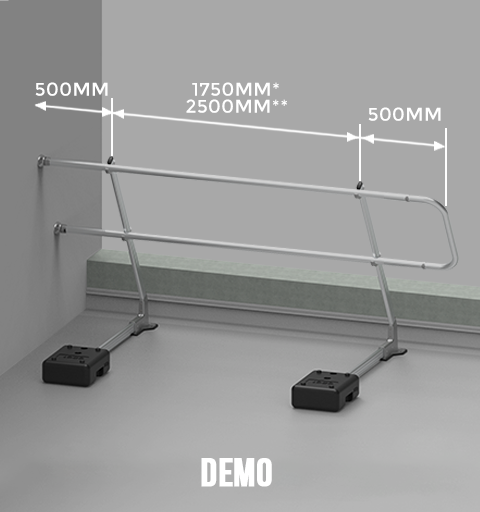

③ The maximum allowed space between wall and first post is 500mm ④ The maximum allowed space between free end and post is 500mm
⑤ The maxmium allowed span between posts is 1750/2500mm ⑥ The base moudle length is 1330/1630mm
*EN14122-3:2016
**EN13374:2013+A1:2018
